The Critical Minerals to China, EU, and U.S. National Security

The Critical Minerals to China, EU, and U.S. Security

Governments formulate lists of critical minerals according to their industrial requirements and strategic evaluations of supply risks.

Over the last decade, minerals like nickel, copper, and lithium have been on these lists and deemed essential for clean technologies like EV batteries and solar and wind power.

This graphic uses IRENA and the U.S. Department of Energy data to identify which minerals are essential to China, the United States, and the European Union.

What are Critical Minerals?

There is no universally accepted definition of critical minerals. Countries and regions maintain lists that mirror current technology requirements and supply and demand dynamics, among other factors.

These lists are also constantly changing. For example, the EU’s first critical minerals list in 2011 featured only 14 raw materials. In contrast, the 2023 version identified 34 raw materials as critical.

One thing countries share, however, is the concern that a lack of minerals could slow down the energy transition.

The Critical Minerals to China, EU, and U.S. Security

With most countries committed to reducing greenhouse gas emissions, the total mineral demand from clean energy technologies is expected to double by 2040.

U.S. and EU Seek to Reduce Import Reliance on Critical Minerals

Ten materials feature on critical material lists of both the U.S., the EU, and China, including cobalt, lithium, graphite, and rare earths.

Mineral / Considered Critical	🇺🇸 U.S.	🇪🇺 EU	🇨🇳 China
Aluminum/ bauxite	Yes	Yes	Yes
Antimony	Yes	Yes	Yes
Cobalt	Yes	Yes	Yes
Copper	Yes	Yes	Yes
Fluorspar	Yes	Yes	Yes
Graphite	Yes	Yes	Yes
Lithium	Yes	Yes	Yes
Nickel	Yes	Yes	Yes
Rare earths	Yes	Yes	Yes
Tungsten	Yes	Yes	Yes
Arsenic	Yes	Yes	No
Barite	Yes	Yes	No
Beryllium	Yes	Yes	No
Bismuth	Yes	Yes	No
Germanium	Yes	Yes	No
Hafnium	Yes	Yes	No
Magnesium	Yes	Yes	No
Manganese	Yes	Yes	No
Niobium	Yes	Yes	No
Platinum	Yes	Yes	No
Tantalum	Yes	Yes	No
Titanium	Yes	Yes	No
Vanadium	Yes	Yes	No
Tin	Yes	No	Yes
Zirconium	Yes	No	Yes
Phosphorus	No	Yes	Yes
Cesium	Yes	No	No
Chromium	Yes	No	No
Indium	Yes	No	No
Rubidium	Yes	No	No
Samarium	Yes	No	No
Tellurium	Yes	No	No
Zinc	Yes	No	No
Boron	No	Yes	No
Coking Coal	No	Yes	No
Feldspar	No	Yes	No
Gallium	No	Yes	No
Helium	No	Yes	No
Phosphate Rock	No	Yes	No
Scandium	No	Yes	No
Silicon	No	Yes	No
Strontium	No	Yes	No
Gold	No	No	Yes
Iron ore	No	No	Yes
Molybdenum	No	No	Yes
Potash	No	No	Yes
Uranium	No	No	Yes

Despite having most of the same materials found in the U.S. or China’s list, the European list is the only one to include phosphate rock. The region has limited phosphate resources (only produced in Finland) and largely depends on imports of the material essential for manufacturing fertilizers.

Coking coal is also only on the EU list. The material is used in the manufacture of pig iron and steel. Production is currently dominated by China (58%), followed by Australia (17%), Russia (7%), and the U.S. (7%).

The U.S. has also sought to reduce its reliance on imports. Today, the country is 100% import-dependent on manganese and graphite and 76% on cobalt.

After decades of sourcing materials from other countries, the U.S. local production of raw materials has become extremely limited. For instance, there is only one operating nickel mine (primary) in the country, the Eagle Mine in Michigan. Likewise, the country only hosts one lithium source in Nevada, the Silver Peak Mine.

China’s Dominance

Despite being the world’s biggest carbon polluter, China is the largest producer of most of the world’s critical minerals for the green revolution.

China produces 60% of all rare earth elements used as components in high-technology devices, including smartphones and computers. The country also has a 13% share of the lithium production market. In addition, it refines around 35% of the world’s nickel, 58% of lithium, and 70% of cobalt.

Among some of the unique materials on China’s list is gold. Although gold is used on a smaller scale in technology, China has sought gold for economic and geopolitical factors, mainly to diversify its foreign exchange reserves, which rely heavily on the U.S. dollar.

Analysts estimate China has bought a record 400 tonnes of gold in recent years.

China has also slated uranium as a critical mineral. The Chinese government has stated it intends to become self-sufficient in nuclear power plant capacity and fuel production for those plants.

According to the World Nuclear Association, China aims to produce one-third of its uranium domestically.

Related Topics:coal cobalt commodities copper critical metals critical minerals EV evs featured gold lithium minerals nickel uranium

Up Next

China Dominates the Supply of U.S. Critical Minerals List

Don't Miss

Charted: America’s Import Reliance of Critical Minerals

Click for Comments

Technology Metals

Charted: Where the U.S. Gets Its Rare Earths From

China accounts for 70% of U.S. rare earth imports.

Published

2 weeks ago

on

May 1, 2025

By

Bruno Venditti

Between 2020 and 2023, China accounted for 70% of U.S. rare earth imports. This chart shows where the U.S. gets its rare earths from.

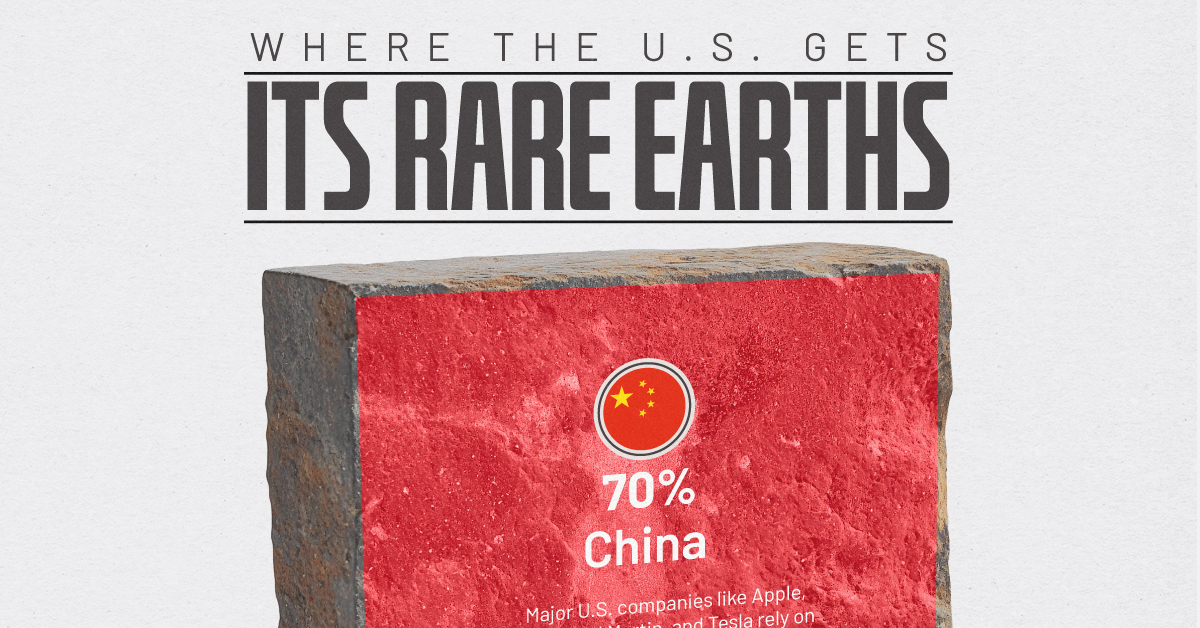

Charted: Where the U.S. Gets Its Rare Earths From
